Fields Fireman fire fighting equipment

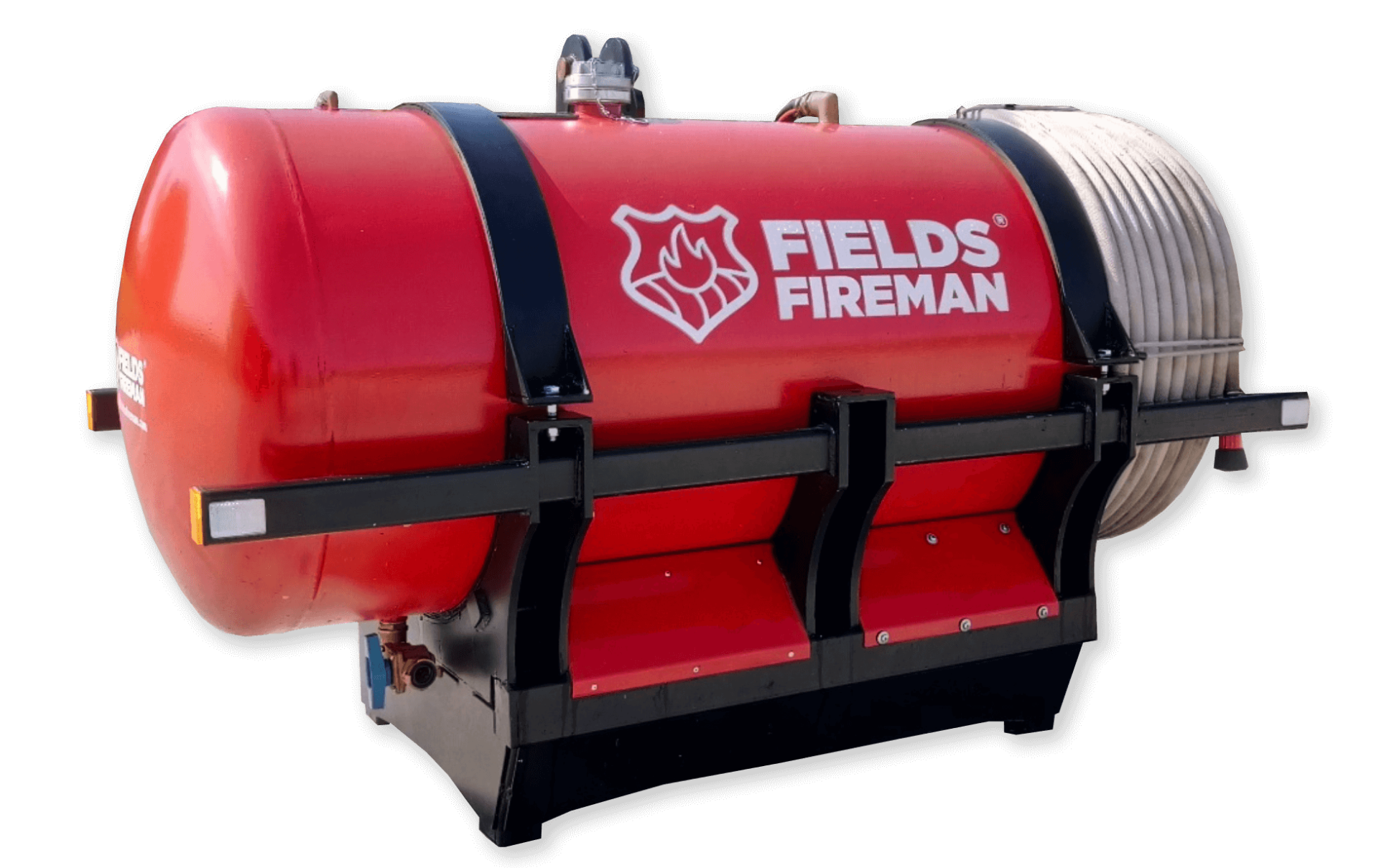

The FIELDS FIREMAN H1-650 is a multi-purpose fire extinguisher mounted on an agricultural tractor. The primary purpose of the extinguisher is to effectively and promptly suppress fires that occur during agricultural work. The extinguisher is a three-point, suspended structure that can be mounted on the front or rear drawbar of agricultural tractors.
- Type: Fields Fireman H1-650
- Extinguishing system dimensions: 1700x1000x1120 mm
- Extinguishing system weight (empty / filled): 550 / 1200 kg
- Tank capacity: 650 l
- Water hose length: 20 m
- Shooting range: 15 m
- Operating time (with full tank): 15 minutes
- Theoretical volume flow: 43 l / min
- Water pressure: 3 bar
Fields Fireman
Frame: An important aspect of the design was to make the support structure as robust as possible, able to withstand long-term, increased use, vibration and other significant mechanical effects. The lower connection points on the rear of the console allow the FIELDS FIREMAN H1-650 fire extinguisher to be attached to the lower link arm of the tractor, and then the upper link to the third link arm of the tractor.
Central drive: The central drive is a unit consisting of a hydraulic motor and a connected water pump. The water volume and water pressure can be controlled using a control valve.
Tank:A cylindrical, hot-dip galvanized steel tank, 700 mm in diameter, is used for storing water. On the top of the tank there is a STORZ C filling nozzle, through which the tank can be filled with water. In addition, there is a vent hole on the top of the tank. The hole at the bottom of the tank has a bayonet-lock hose connector with a plug, which is suitable for filling and emptying the tank. On the right side of the tank there is a transparent plastic hose, the water level indicator tube, which delimits the tank in a semicircle.
Hose and jet: A 20 m long D25 shaped fire-retardant fire hose is connected to the tank, which has a variable spray pattern according to the D25 EN 671 standard.
Photo galery
References
We can only recommend the Fields Fireman. The workmanship of the individual components and the entire tank is of extremely high quality. We have the Fields Fireman mounted on the front hydraulics of our Massey Ferguson 7618 - where it not only serves as a fire extinguishing device, but can also be used ideally as a front weight. An absolute revolution in this field! Design, performance, handling TOP! Furthermore, the customer service is extremely helpful and always available!
Jasmin Zacharias
Agricultural influencer
Austria
We discovered the Fields Fireman agricultural firefighting equipment after an unfortunate fire. After seeing the product on site, we immediately invested in two units. Since then, it has become an indispensable tool for harvesting and straw collection. Thanks to its simple and quick use and robust manufacturing quality, I recommend it to anyone who wants to keep their valuable machinery safe from the often sudden fires!
Lelkes Péter
PD Sokolce
Slovakia
I have been looking for the right fire extinguisher for years. At a farmers' meeting, I saw the device that met all my expectations: it was equipped with a hydraulic water pump, a water tank of the right size and the ability to extinguish with foam. It is easy to use, versatile: for example, it provides a mobile fire extinguishing standby option during harvest, and can also be used for cleaning. Fortunately, we have not had to use it for firefighting yet, but its presence provides safety. The design of the device is also very well thought out.
Kalfsbeek Harm
Europa Faming Kft.
Hungary
I am very satisfied with the device. We have already tested it at various fire department trainings and the fire department was also very satisfied with the device. It definitely has a permanent place on my tractor. Unfortunately, it arrived so late that I could no longer use it for harvesting, but it is also great as a first weight and if something gets dirty, you can wash it immediately.
